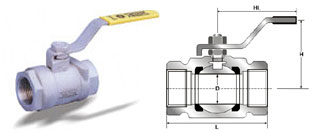

Screwed Reduce & Full Bore
- Female Screwed BSP, NPT And Socket Weld
- Pressure Rating ASME 150/300/800 Class & BS Equ.
- Screwed End As Per ASME B2.1
- Socket Weld Ends ASME B16.11
- Buttweld ASME B16.26
- Testing Std. BS 5146 / API 598
- P.T.F.E Seats And Seals
- Special Filled P.T.F.E Seats Are Available
- For Test Pressure Upto 204 Kg. / Cm2
- Design Std : BS 5351
- Fire Safe / Non Fire Safe
- Blow Out Proof Stem & Floating Ball
| SIZE | D | L | H | HL |
|---|---|---|---|---|
| 1/4" | 6.00mm | 61 | 62 | 120 |
| 3/8" | 9.00mm | 61 | 62 | 120 |
| 1/2" | 12.00mm | 64 | 62 | 120 |
| 3/4" | 14.30mm 19.05mm |
80 | 66 | 142 |
| 1" | 20.65mm 25.40mm |
88 | 68 | 142 |
| 1" 1/2" | 31.50mm 38.10mm |
110 | 91 | 230 |
| 2" | 38.10mm 50.80mm |
128 | 101 | 230 |
One Piece & Flanged End
- Female Screwed BSP, NPT And Socket Weld
- Pressure Rating ASME 150/300/800 Class & BS Equ.
- Screwed End As Per ASME B2.1
- Socket Weld Ends ASME B16.11
- Buttweld ASME B16.26
- Testing Std. BS 5146 / API 598
- P.T.F.E Seats And Seals
- Special Filled P.T.F.E Seats Are Available
- For Test Pressure Upto 204 Kg. / Cm2
- Design Std : BS 5351
- Fire Safe / Non Fire Safe
- Blow Out Proof Stem & Floating Ball
| SIZE | D | L | H | HL |
|---|---|---|---|---|
| 1/4" | 6.00mm | 61 | 62 | 120 |
| 3/8" | 9.00mm | 61 | 62 | 120 |
| 1/2" | 12.00mm | 64 | 62 | 120 |
| 3/4" | 14.30mm 19.05mm |
80 | 66 | 142 |
| 1" | 20.65mm 25.40mm |
88 | 68 | 142 |
| 1" 1/2" | 31.50mm 38.10mm |
110 | 91 | 230 |
| 2" | 38.10mm 50.80mm |
128 | 101 | 230 |
