P.P. Valves & Fittings

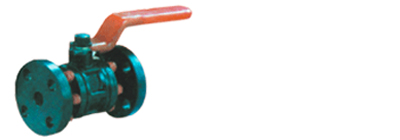

BALL VALVE FLANGED END

  • Three Piece Design
  • Size : 15 mm to 150 mm
  • End Connection : Flanged to ASA 150, BS Table D, Din or any other require
  • MOC : Polypropylene
  • Full Bore Allows 100% Flow, Every Valves is Hydro Tested @ 10 kg / cm2 for Body & Seat

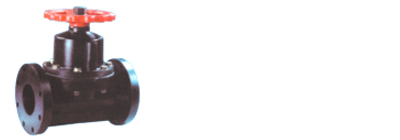

    • DIAPHRAGM VALVE

  • ONE PIECE RUGGED BODY with Cross Ribs at Flanged Ends
  • Available with Neoprene, EPDM, Hyplon, Butyl, Teflon Coted and Pure Teflon Diaphragms
  • Size : 15 mm to 100 mm
  • End Connection : Flanged to ASA 150, BS Table D, Din or any other require
  • Screwed to BSPT / PVC Socket End
  • MOC : Polypropylene
  • Hydro Tested @ 10 kg / cm2 for Body & Seat

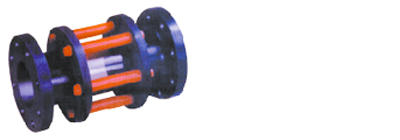

    • SIGHT GLASS

  • Three Piece Rigid Design
  • Size : 25 mm to 150 mm
  • End Connection : Flanged to ASA 150, BS Table D, Din or any other require
  • MOC : Polypropylene
  • Available with Plain Borosil Tube Section Glass for Low Pressure & Coloured
  • Glass for High Pressure Application

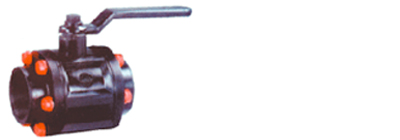

    • BALL VALVE SCREWED END

  • Three Piece Design
  • Size : 15 mm to 150 mm
  • End Connection : Screwed to BSPT / PVC Socket Weld
  • MOC : Polypropylene
  • Full Bore Allows 100% Flow, Every Valves is Hydro Tested @ 10 kg / cm2 for Body & Seat

    •

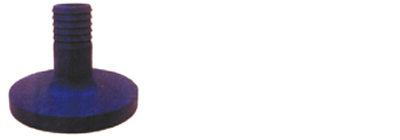

    HOSE NIPPLE

  • Size : 15 mm to 150 mm
  • MOC : Polypropylene / Nylone

    • Application

    • Chemical, Pharmaceutical, Petro-chemicals, Fertilizer Industries, Oil Refineries, Sugar Industries, Water Works,
       Cement Factories etc..

    SPECIFICATION

    • Material : High grade high quality Polypropylene.
    • Manufactured conforming to IS : 1986 Standard.

    TESTING

    • Hydraulic Test
    • Endurance Test
    • Drop Test
    • Thermal Shock Test
